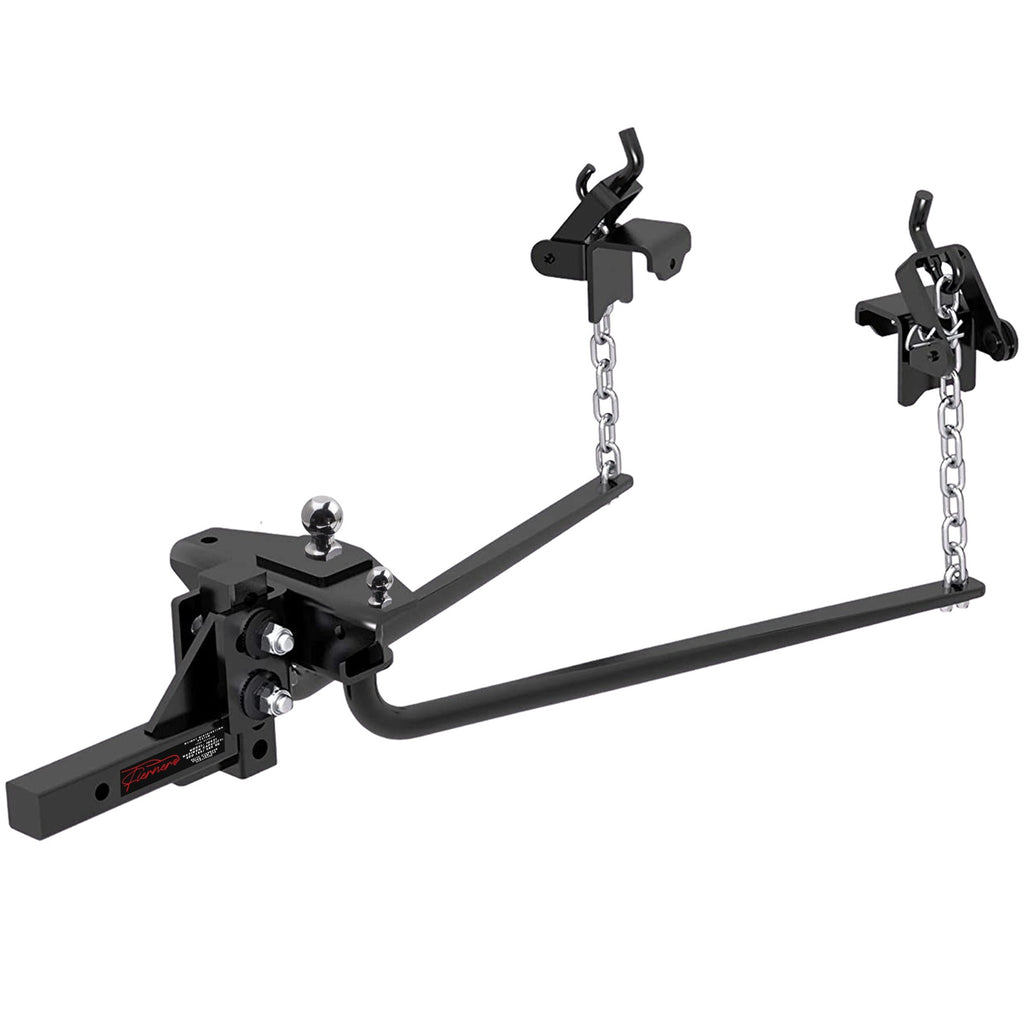

Weight Distribution System - Hitch 365KG

Save 15%
Spartan Towbars & TrailingSKU: WEIGHTFULL8010
25 reviews

Sale price$374.00 Regular price$439.99
Stocked in Australia, Ready To Ship


A Weight Distribution Hitch could be one of the most important tool for your vehicles and trailers. At Trade Hero Australia we sell the highest quality and heavy duty caravan weight distribution kit at a very competitive price.

They help reduce trailer sway and excessive tyre wear by returning the towing vehicle's natural balance. Also, they restore the towing vehicles steering and braking efficiency, headlight alignment and suspension geometry for a smooth and enjoyable towing experience.

The solid steel shank is fully reversible, so it is easy to obtain your required height.

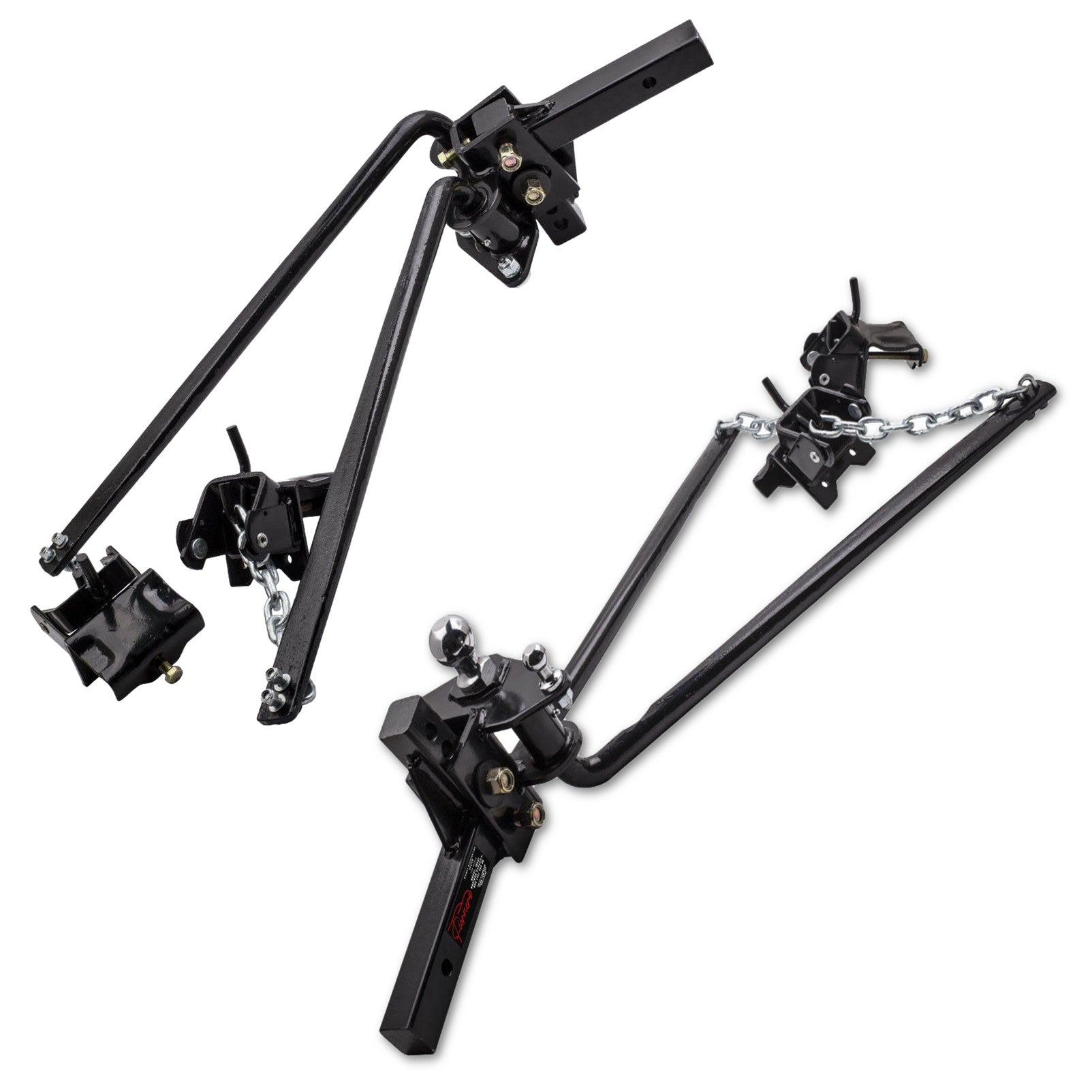

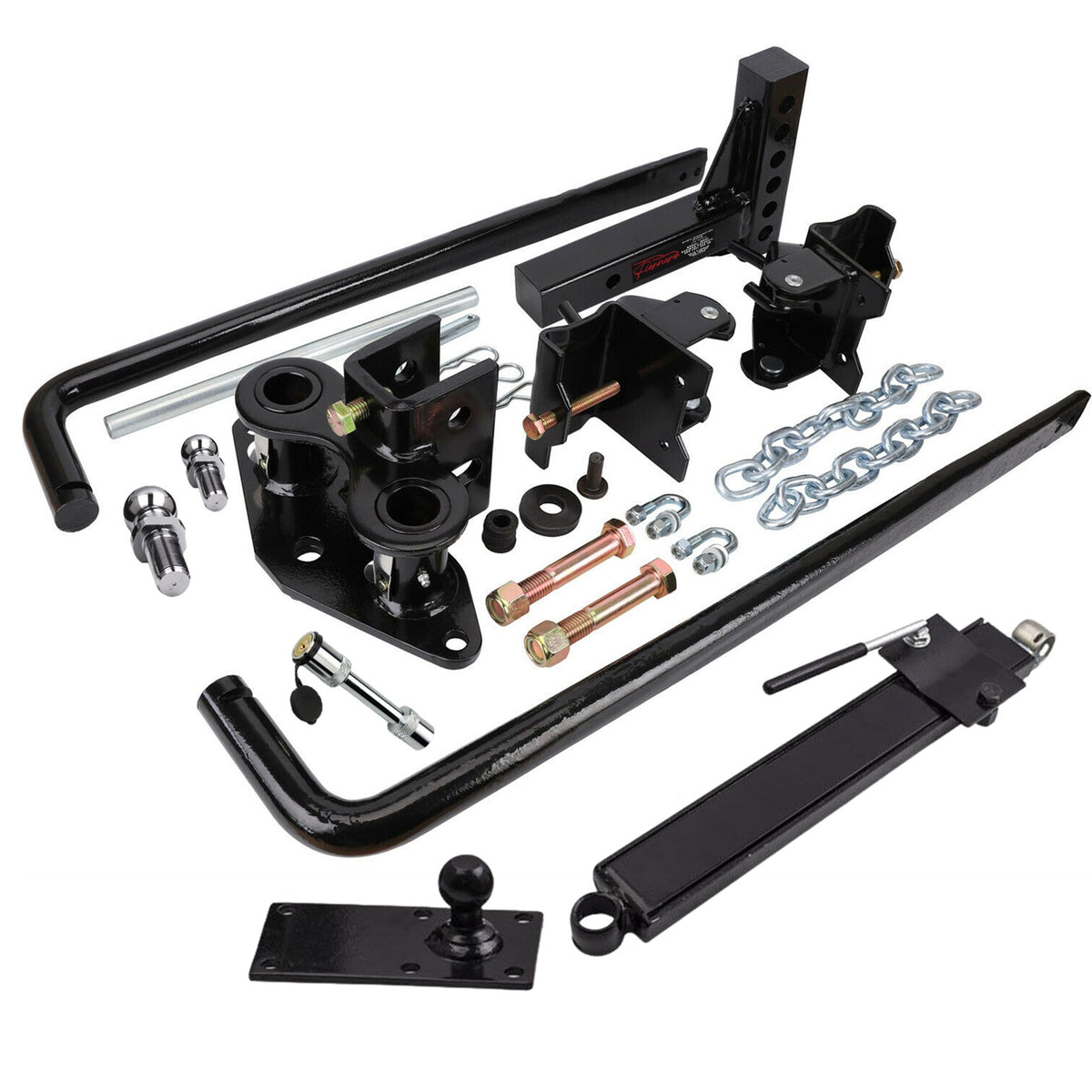

The kit comes complete with a solid steel shank, ball mount head, instructions etc. See parts picture

A Weight Distribution Hitch or WDH transfers the weight of the trailer hitch from the rear of the vehicle to two places: the front wheels of towing vehicle and the tyres of the trailer being towed. Basically it balances both front and rear ends of the vehicle.

  • Suit standard 50mm tow bar receivers

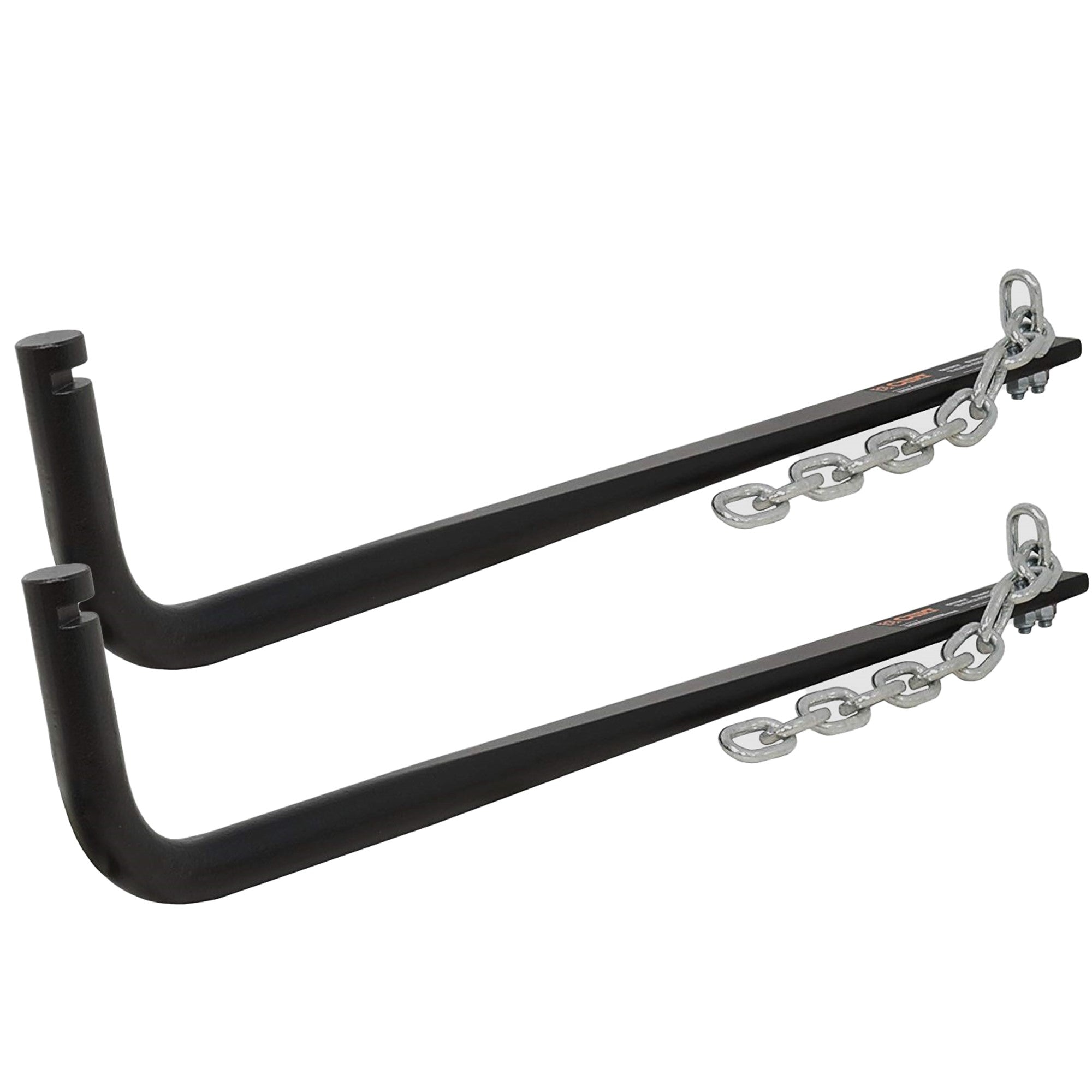

  • Round bar-style spring bars allow extra clearance from A-Frame when turning.
  • Chain brackets and lift handle accessory.
  • Quick-adjust head featuring a course tooth adjustment washer allowing for up to 6 tilt positions,

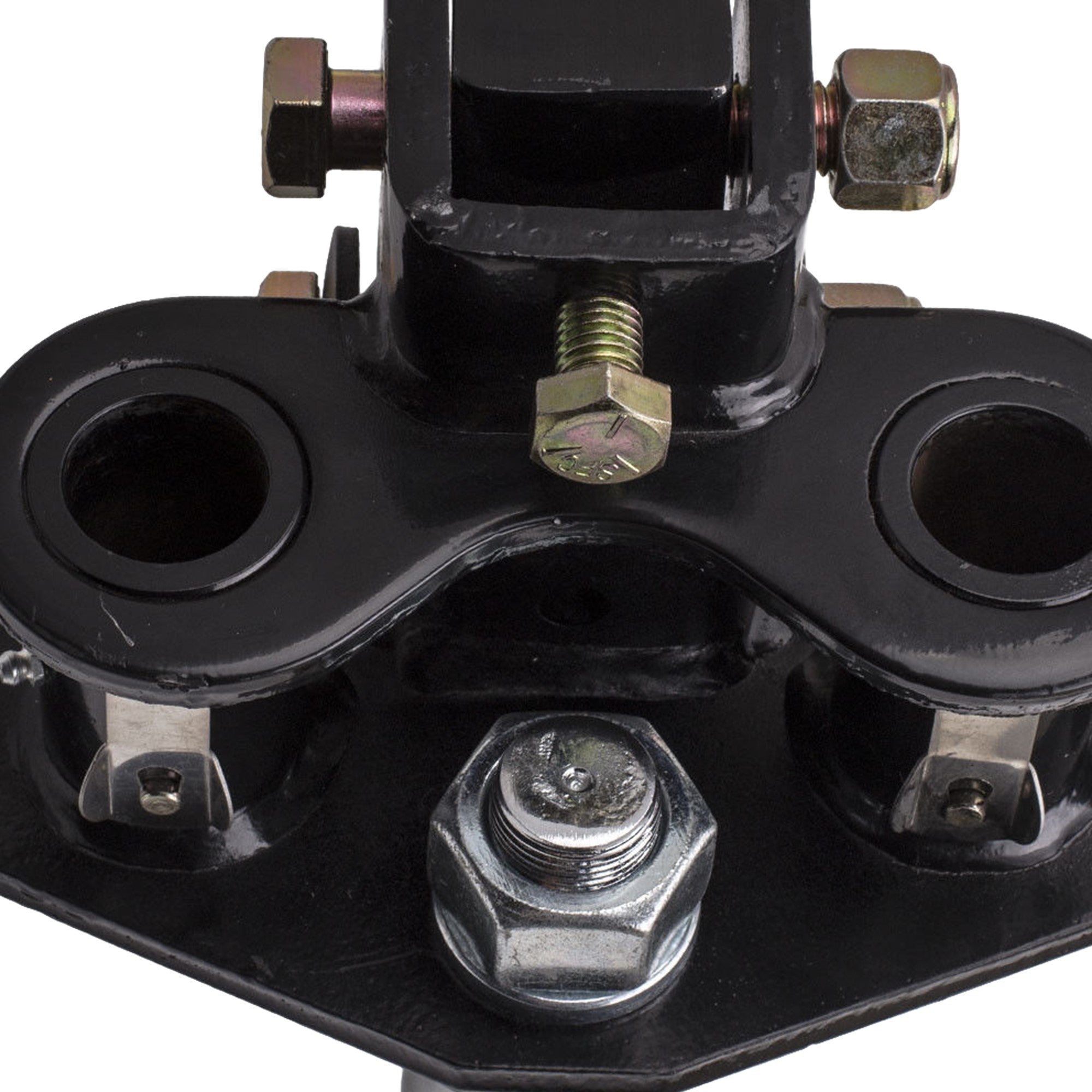

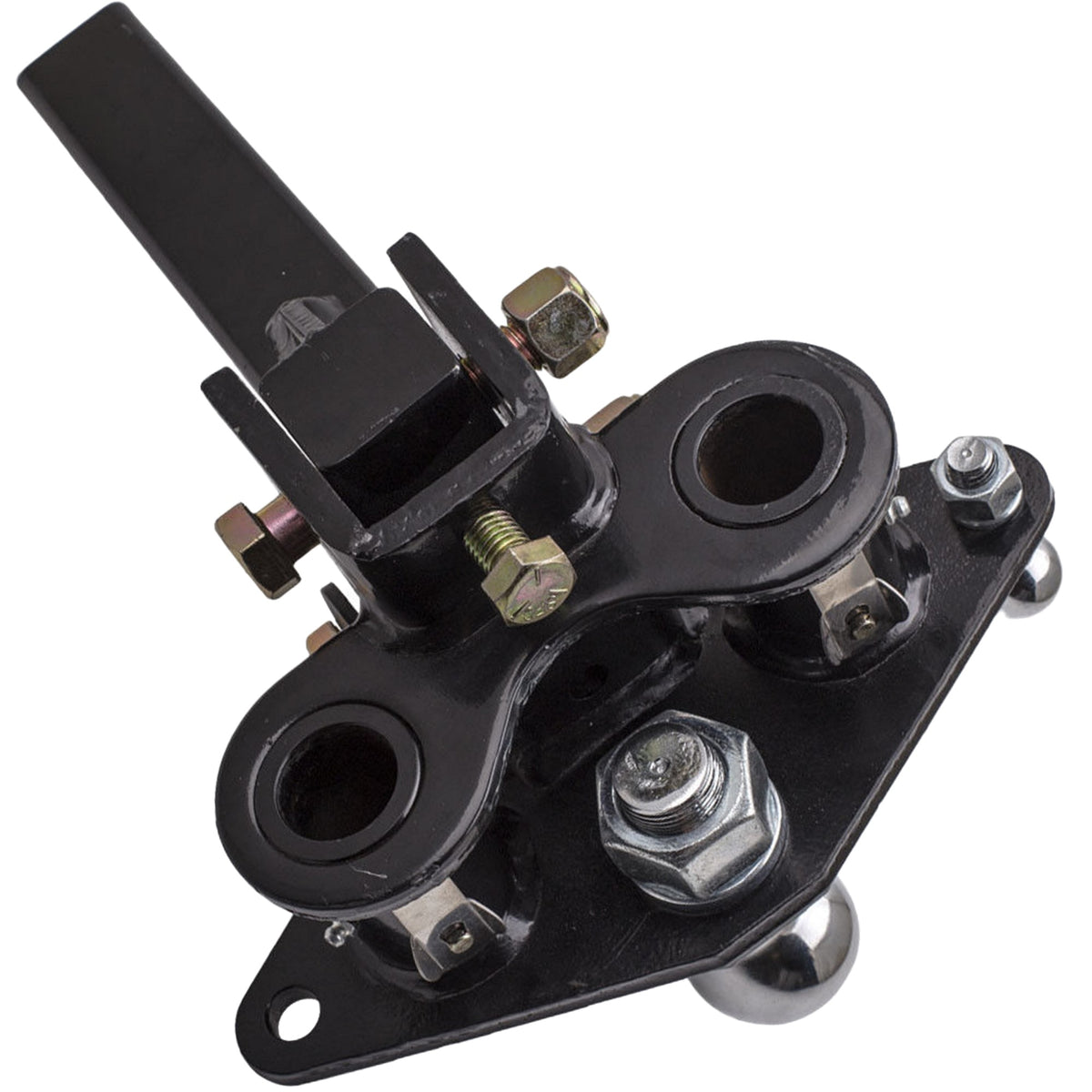

  • Strong cast head featuring double-sided friction sway compatibility.

Our weight distribution systems are designed to distribute weight overall axles, levelling the towing vehicle's ride and trailer for increased stability, control, and economy.

Note: please check the dimensions of the hitch shank to make sure the sizes are suitable for your tow vehicle and caravan ball weights and heights .


  • Maximum capacity: 800 Lbs
  • Suits tongue weight between 501lbs to 800lbs (227.25kg - 365kg)
  • Suits trailer weights (gross) under 8000lbs (3.6T)
  • A simple installation instruction manual comes in the box to give you an easy time installing it.
  • maximum height adjustment: 8" (203.2mm)
  • Raised ball platform for greater coupler clearance
  • Dual sway control platform
  • Shank length: 10"(254mm)
  • Powder-coated finish & steel ball

In the Box

1 - Shank assembly

1 - Head assembly

2 - Spring bar retainer

2 - Spring bar set

1 - Lift handle

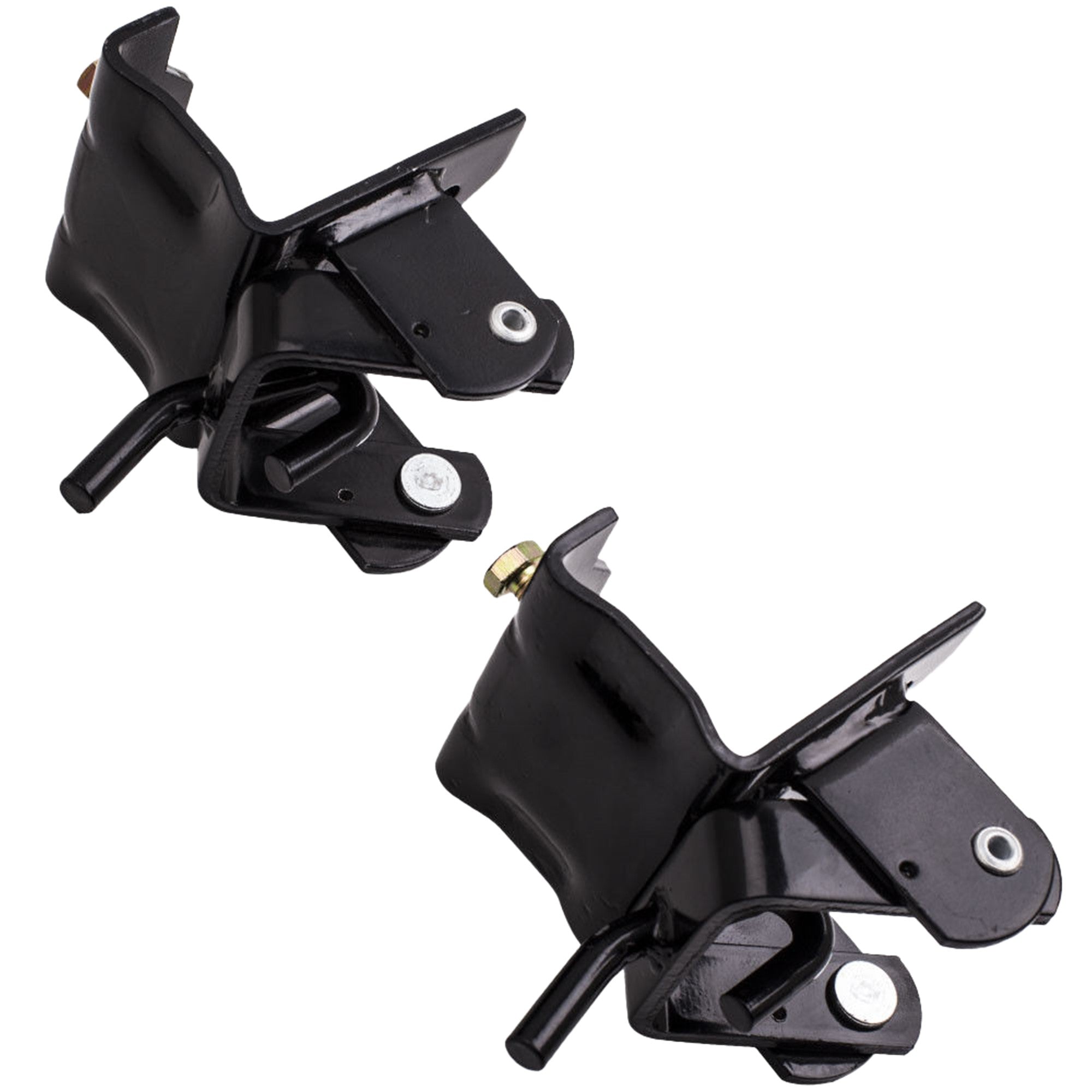

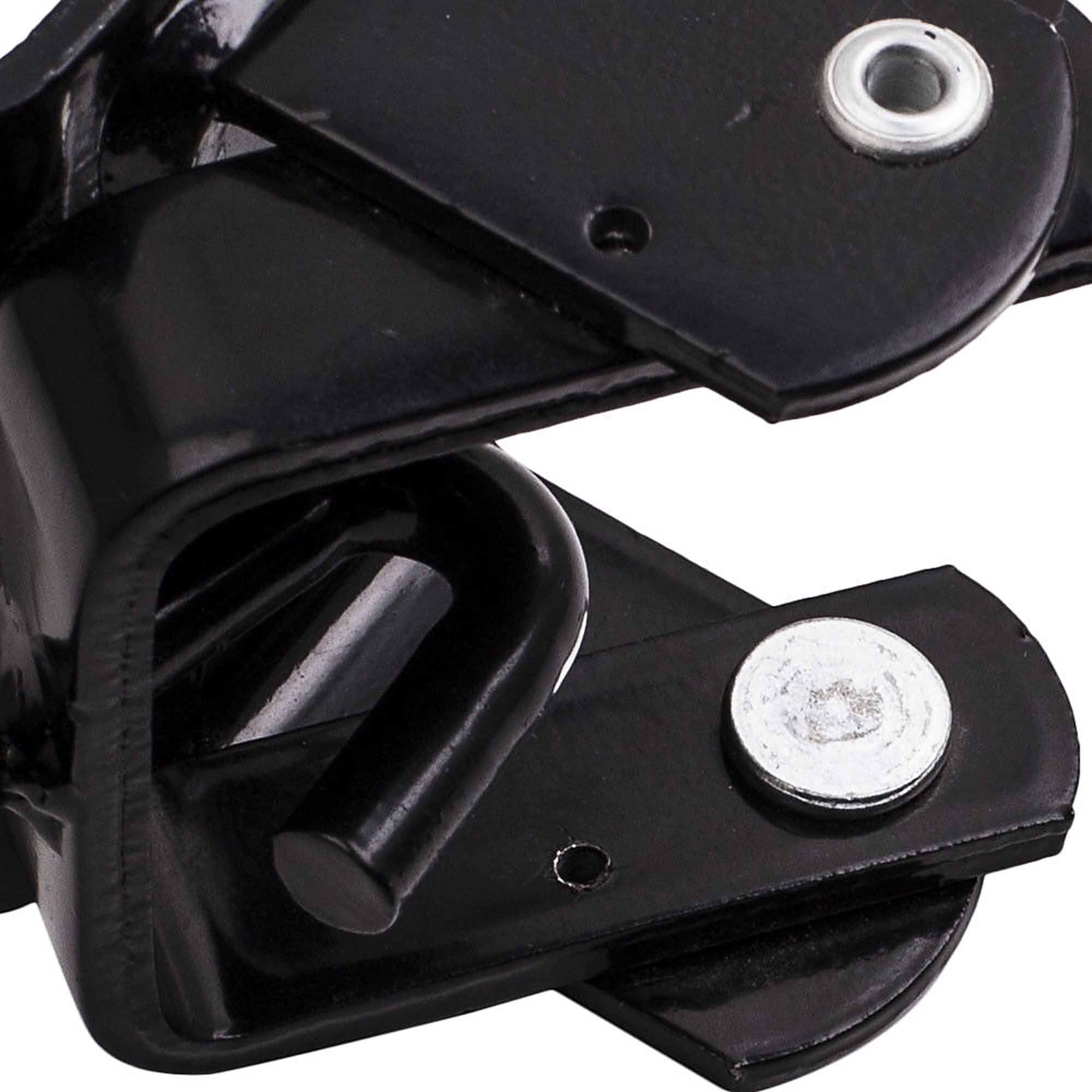

2 - Chain lift bracket

2 - Hex Bolt

1 - Reducer Bushing

1 - Lock Pin

3 - Hair Pin

2 - Locknut

1 - Pin

7 - Hardened Washer

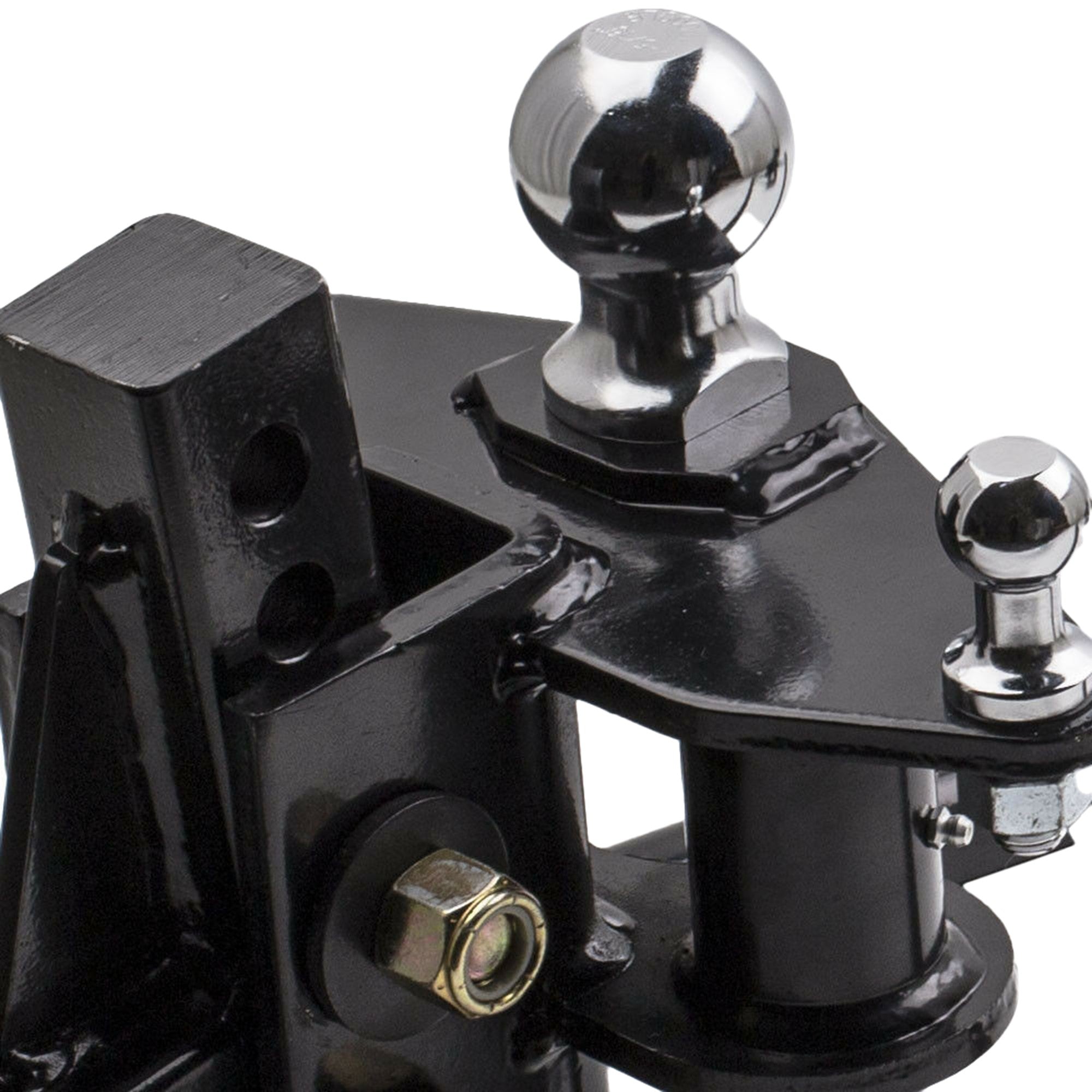

2 - Tow Balls

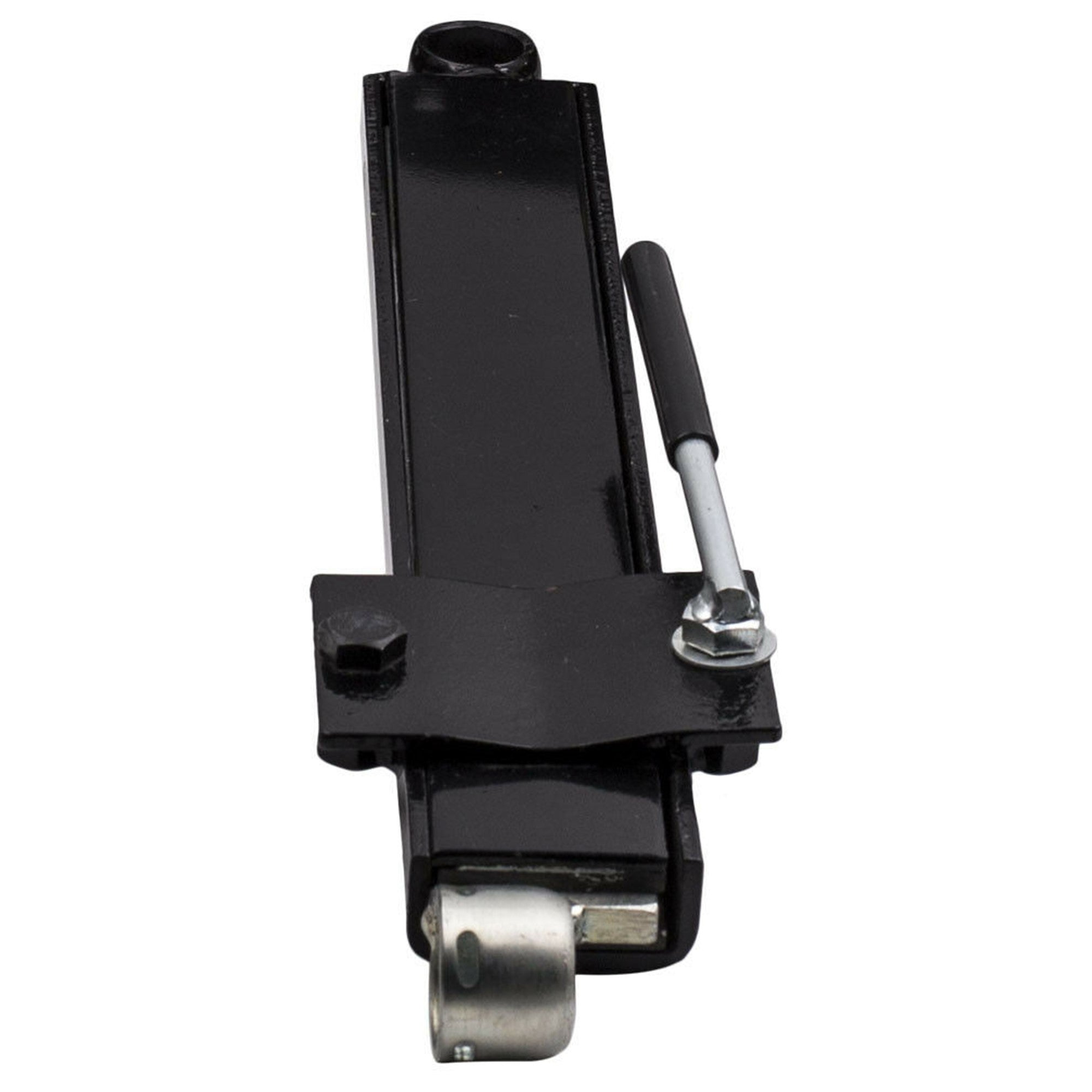

1 - Sway Control
