Description
- Load capacity up to 900 kg

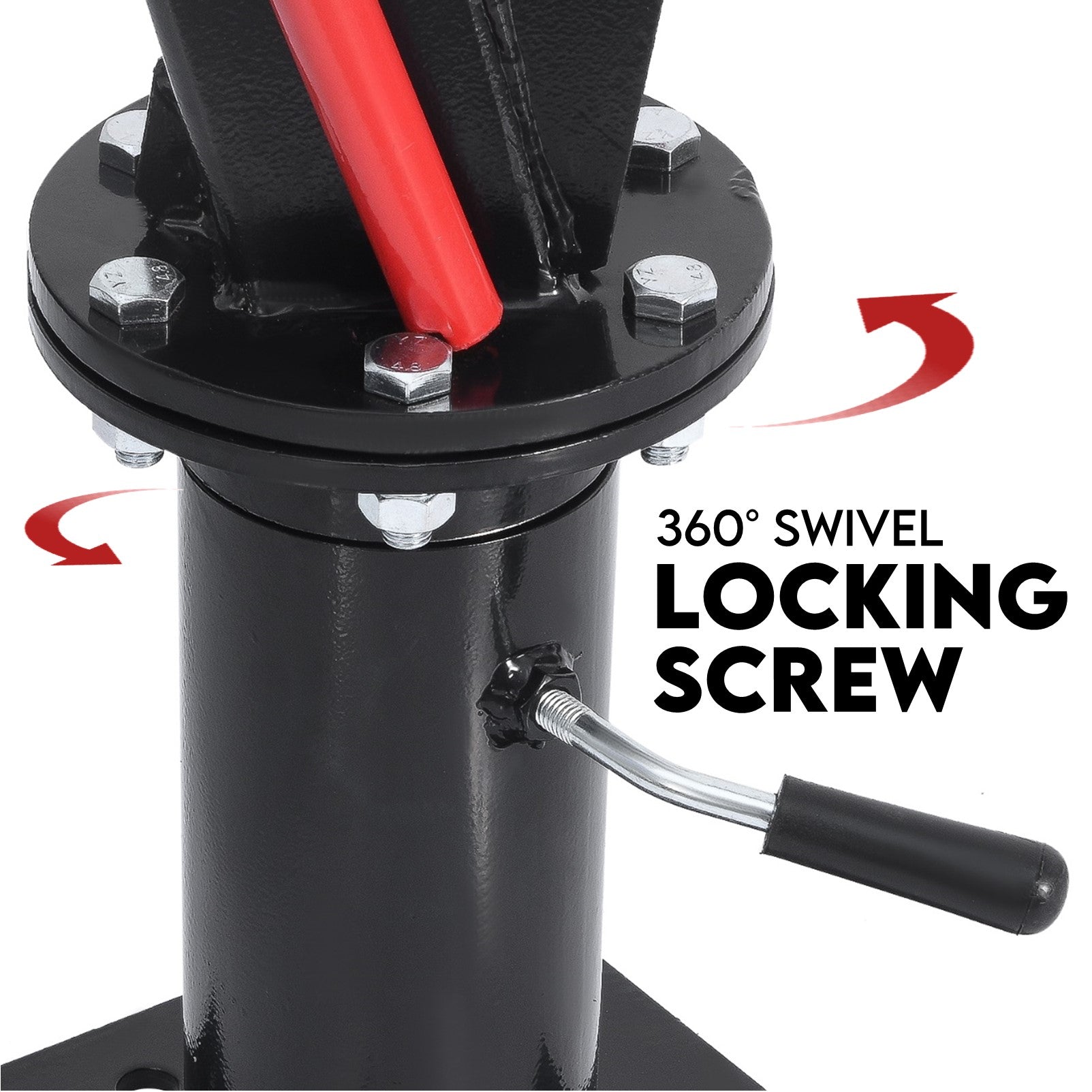

- 360° rotating ring
- Crane arm 2 times adjustable

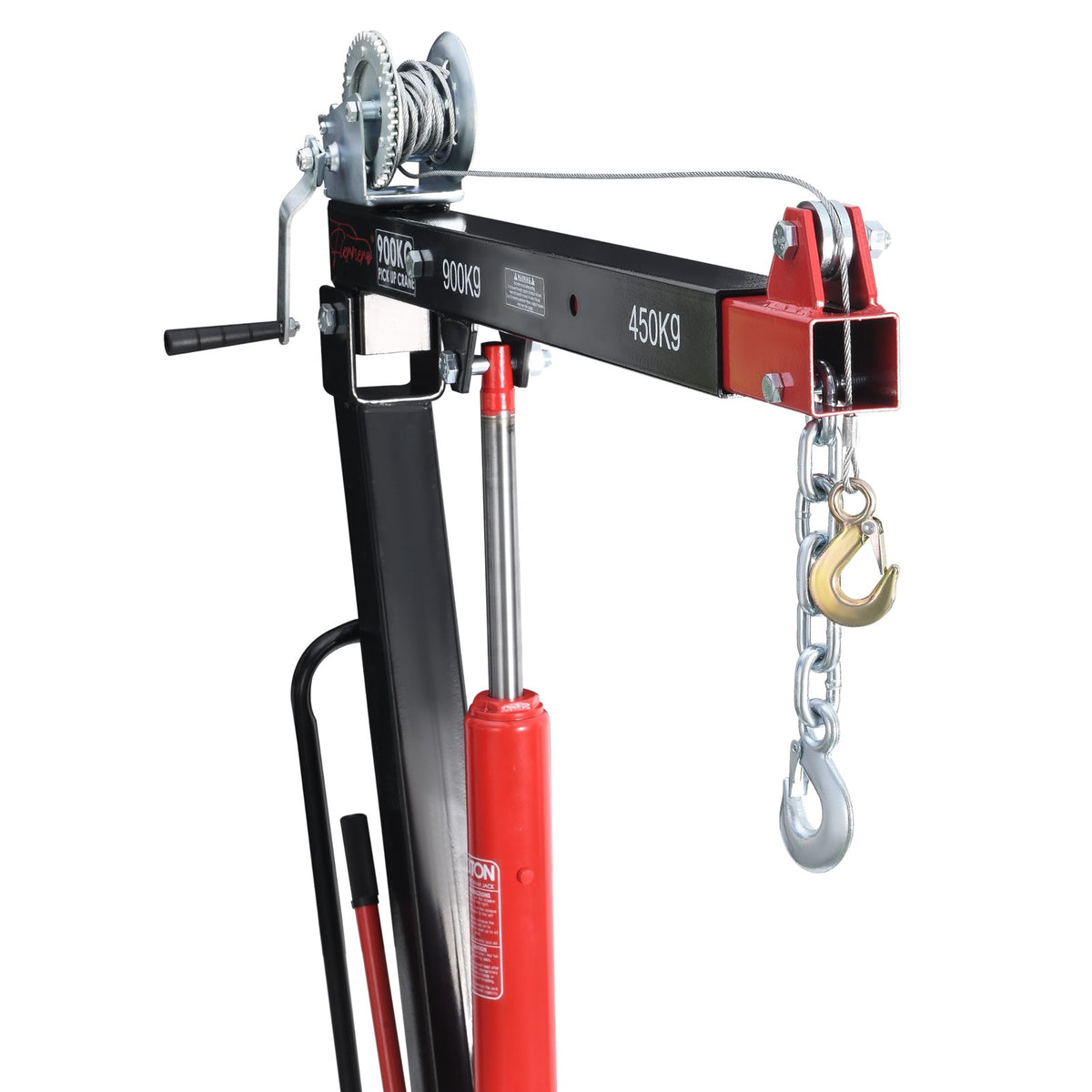

- Loading hook with chain
- Collapsible

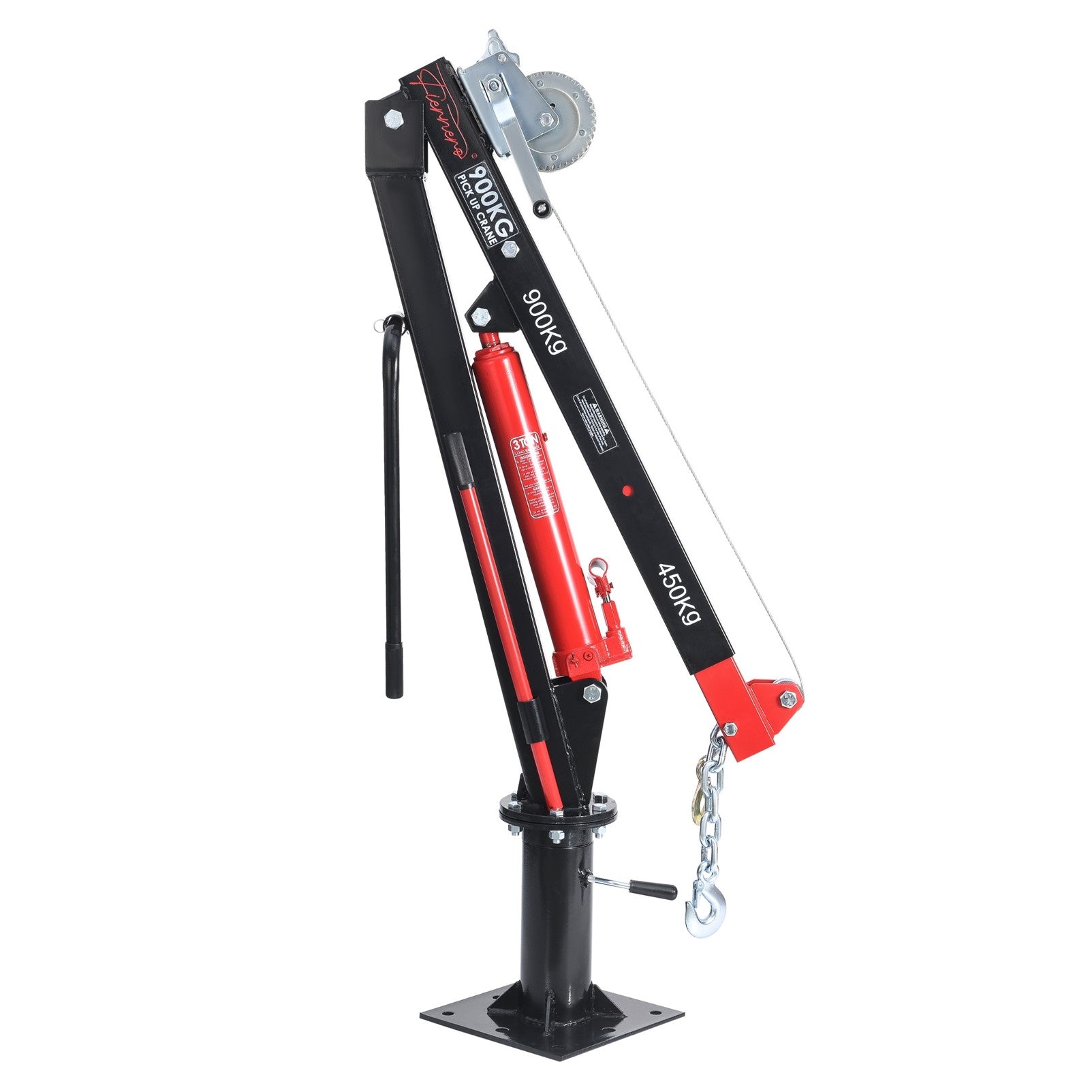

The Tradesman pickup crane is a hydraulically operated lifting crane with a swivel function and is used to load and unload truck beds or for moving loads. With its maximum lifting capacity of 2000LBS (900kg), you can quickly and efficiently carry out numerous lifting tasks. It is thus an efficient aid for nearly all lifting operations up to 0.9 tons - whether at home or on smaller construction sites.

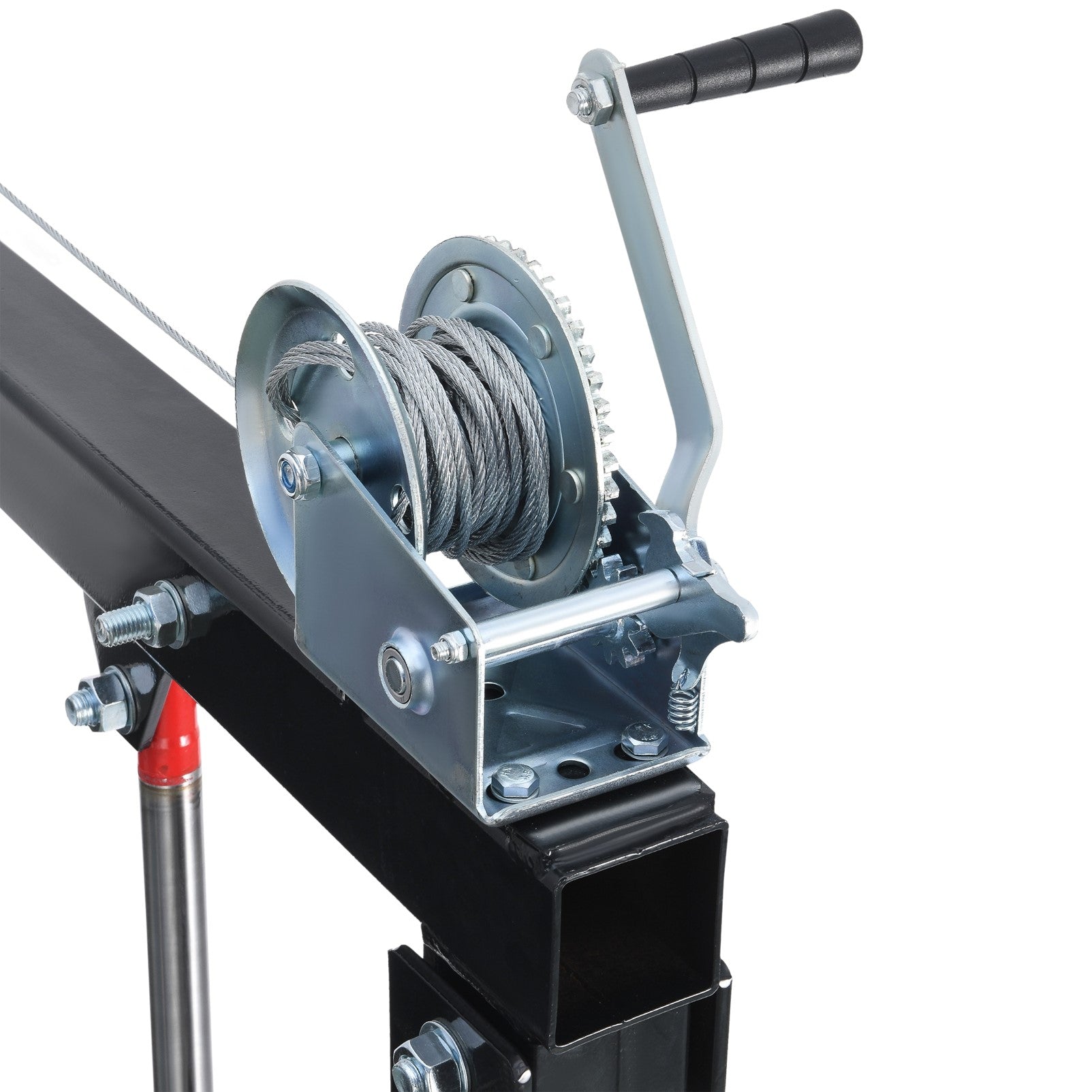

The crane can be easily mounted on almost any solid surface. Mounted on the loading bed of your vehicle or trailer, it can be used wherever your vehicle stands. Depending on the crane's adjustment, the lifting capacity is 225 kg (extended) or max. 900 kg (retracted). Via the steel chain and the loading hook attached to the crane, loads can be picked up directly from the ground and lifted to a height of 1900 mm (hook height). The robust hand winch, as well as the rotary tower, supports you with a 360° swiveling range – even at full load.
Specifications:
Total height from the ground: 215 cm
Cable length of the winds: 9.5 m / rope size: 5 mm

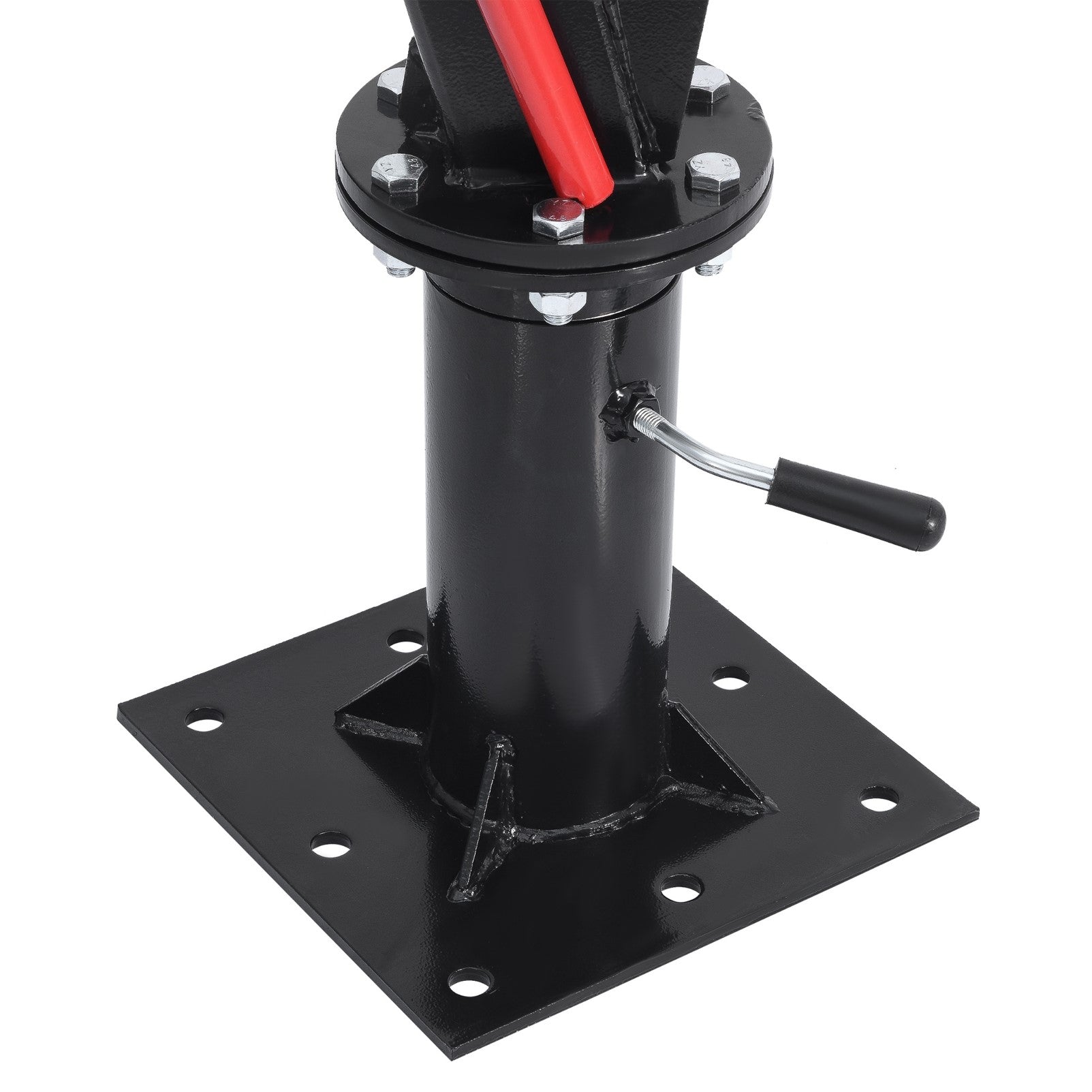

Base mounting plate: 27 x 27 cm. with 8 mounting holes
Maximum opening of large hooks: 20 mm
Maximum opening of small hooks: 23 mm
Load arm length: min. 100 cm / max. 140 cm
2-stage adjustable load arm: 450/900 kg
